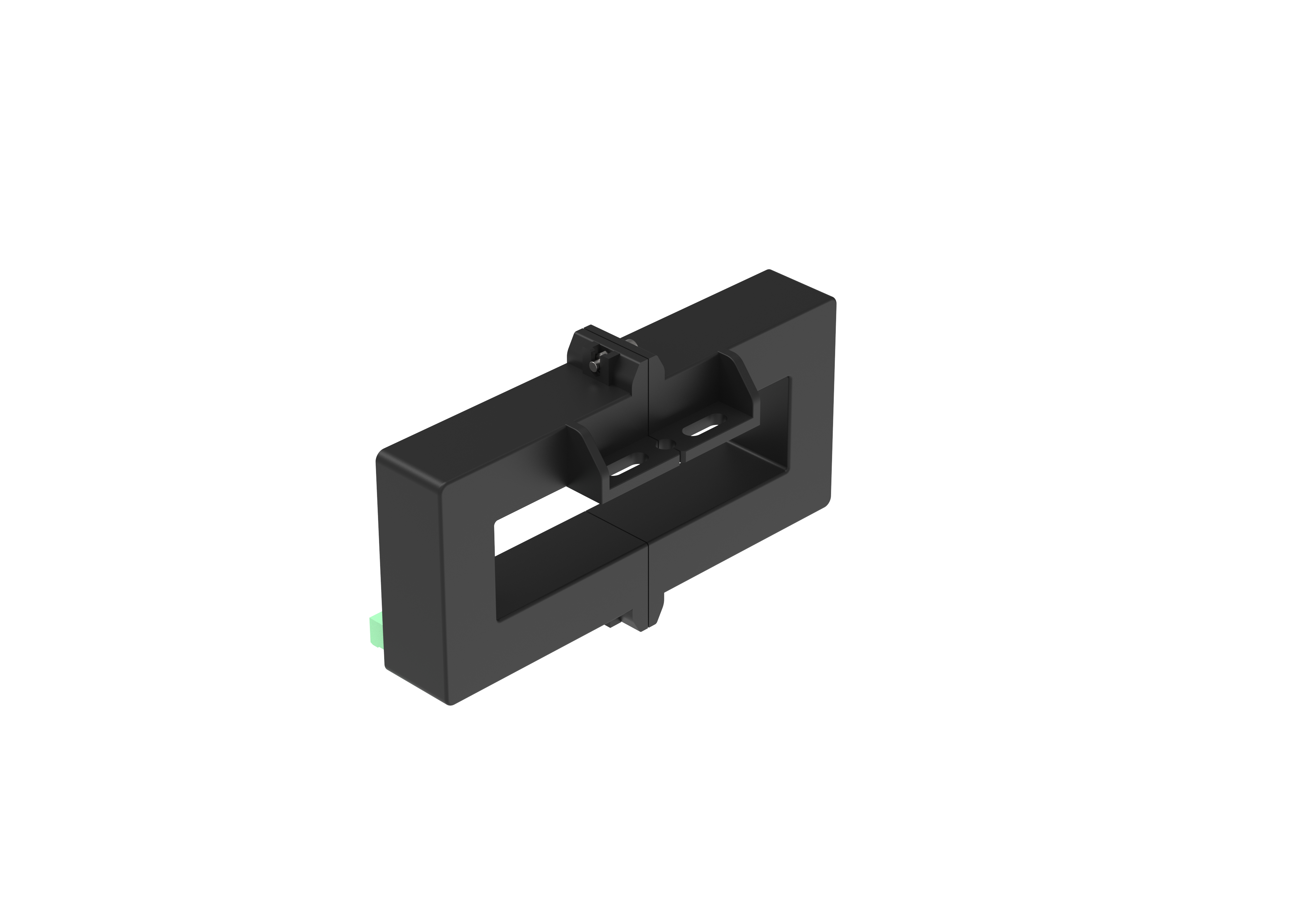

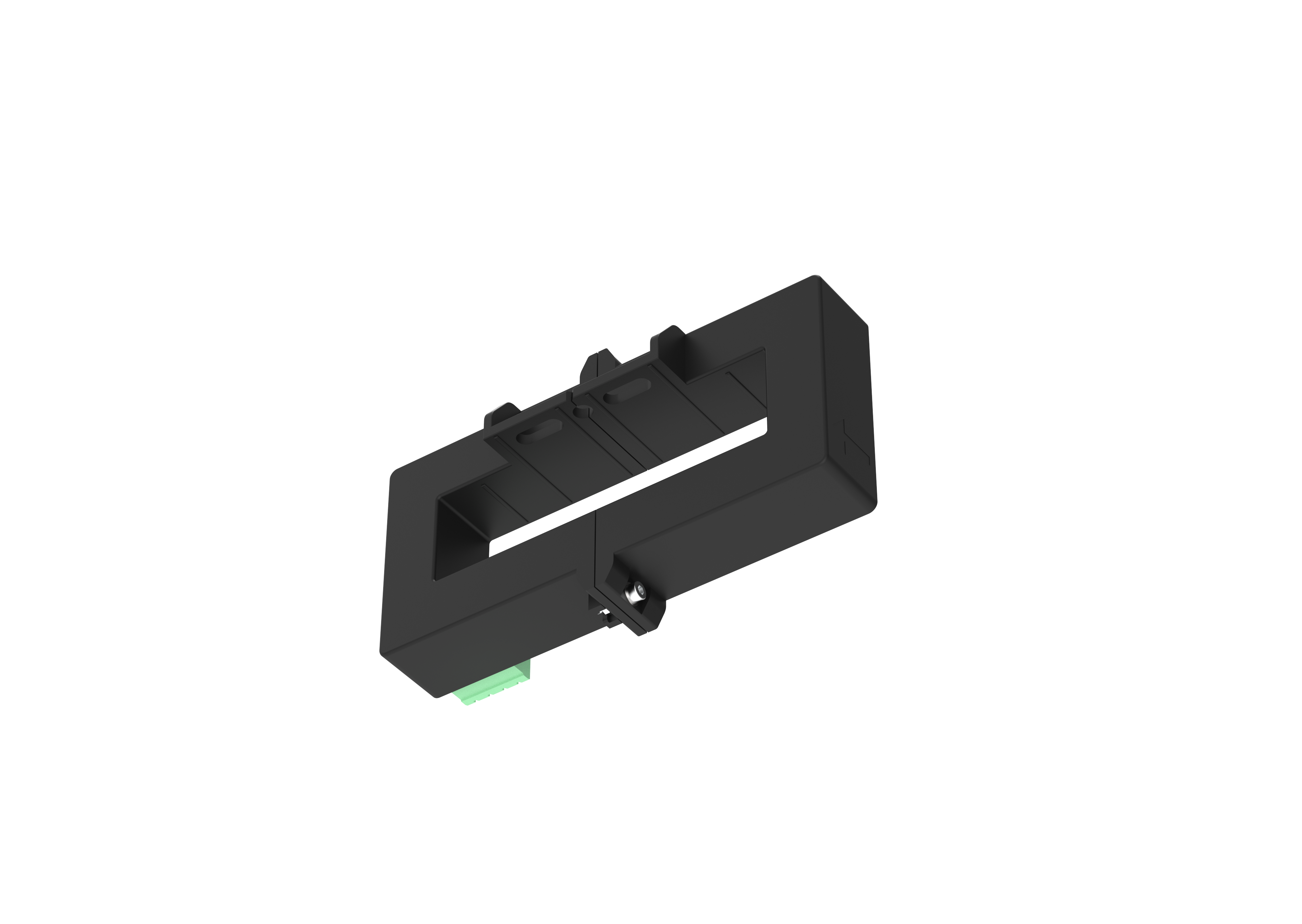

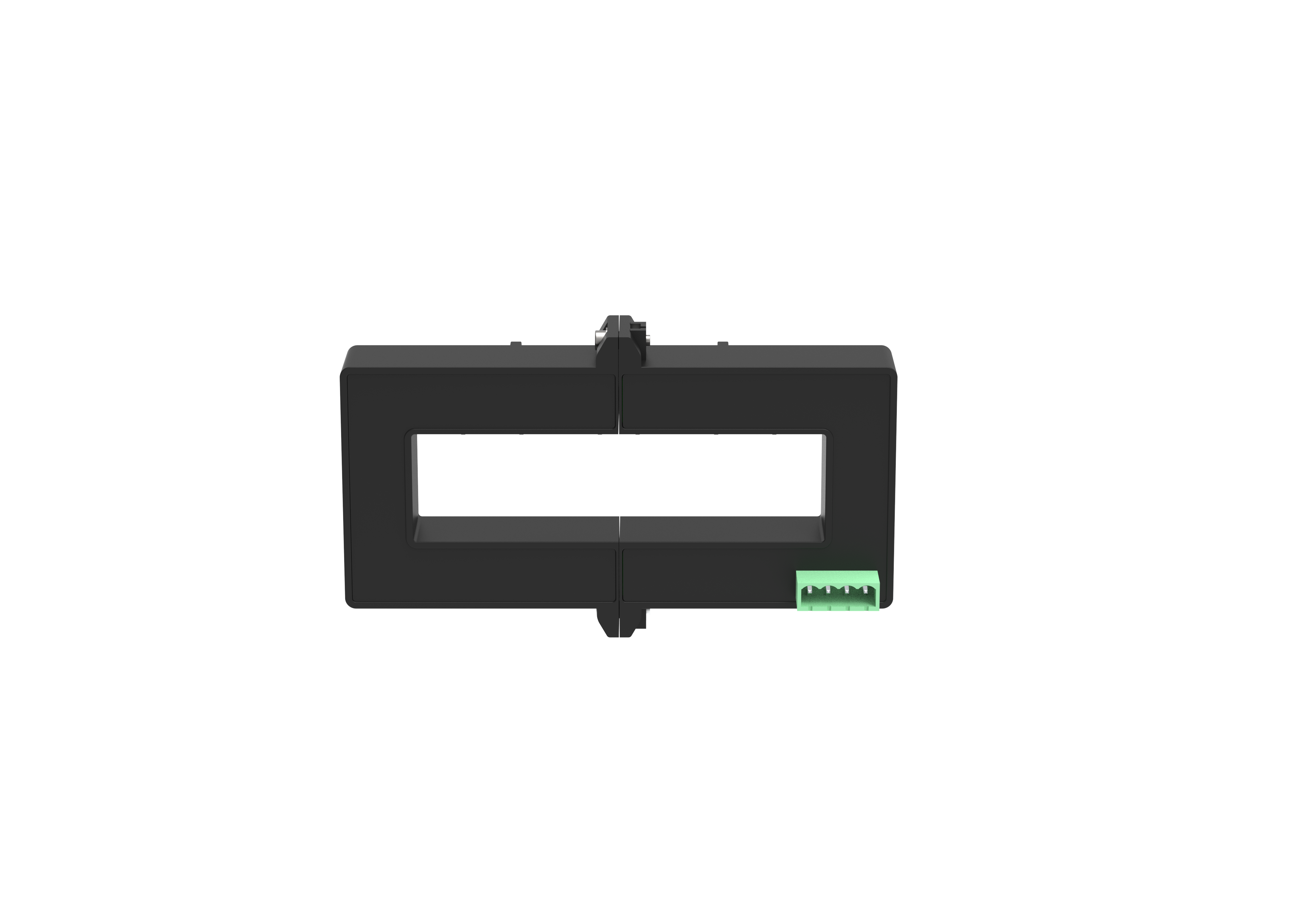

| 原边额定电流有效值(A) | 5000 |
|---|---|
| 原边电流测量范围(A) | ±6000 |
| 供电电压(V) | ±15 |
| 额定输出 | 5V |
| 精度(%) | ±1.0 |
| 输出带宽 | DC...40 |
| 使用温度(℃) | -40~85 |
| 铜排(mm) | 112mm x 30mm |
| 电路板 | |
| 其它 | 2EDG-4P-3.81 |
| 型号 | 原边额定电流有效值(A) | 测量范围(A) | 供电电压(V) | 副边输出 | 精度(%) | 输出带宽 | 工作温度(°C) | 铜排(mm) | 电路板 | 其它 |
|---|---|---|---|---|---|---|---|---|---|---|
| HK1A 200 H00 | 200 | ±240 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø41.3 | 2EDGV-3.81-4P | |
 HK1A 200 H00HK1A 200 H00 分芯霍尔效应电流传感器系列 参数为 原边额定电流 200A, 量程 ±240A, 供电电压 12V, 额定输出 4...20mA, 精度 ±1.0%, 使用温度 -25~85℃, 铜排 Ø41.3 适用于 不间断电源, SMPS（开关电源）, 电焊机电源 产品详情 |
||||||||||
| HK1A 400 H00 | 400 | ±480 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø41.3 | 2EDGV-3.81-4P | |
 HK1A 400 H00HK1A 400 H00 分芯霍尔效应电流传感器系列 参数为 原边额定电流 400A, 量程 ±480A, 供电电压 12V, 额定输出 4...20mA, 精度 ±1.0%, 使用温度 -25~85℃, 铜排 Ø41.3 适用于 不间断电源, SMPS（开关电源）, 电焊机电源 产品详情 |
||||||||||
| HK1V 1000 H00 | 1000 | ±2000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 1000 H00
|
||||||||||
| HK1V 1000 H01 | 1000 | ±2000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 1000 H01
|
||||||||||
| HK1V 200 H00 | 200 | ±400 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 200 H00
|
||||||||||
| HK1V 200 H01 | 200 | ±400 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 200 H01
|
||||||||||
| HK1V 2000 H00 | 2000 | ±4000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 2000 H00
|
||||||||||
| HK1V 2000 H01 | 2000 | ±4000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 2000 H01
|
||||||||||
| HK1V 400 H00 | 400 | ±800 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 400 H00
|
||||||||||
| HK1V 400 H01 | 400 | ±800 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 400 H01
|
||||||||||
| HK1V 600 H00 | 600 | ±1200 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 600 H00
|
||||||||||
| HK1V 600 H01 | 600 | ±1200 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 600 H01
|
||||||||||
| HK1V 800 H00 | 800 | ±1600 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 800 H00
|
||||||||||
| HK1V 800 H01 | 800 | ±1600 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
 HK1V 800 H01
|
||||||||||
| HK3A 100 H20 | ±100 | ±100 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3A 100 H20
|
||||||||||
| HK3A 50 H20 | ±50 | ±50 | 12 | 4...20mA | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3A 50 H20基于霍尔原理的开环电流传感器 原边和副边之间绝缘 原材料符合UL 94-V0 没有插入损耗 输出12±8mA 12V（DC）供电 比例输出 执行标准: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 产品详情 |
||||||||||
| HK3V 100 H20 | ±100 | ±200 | ±12...15 | ±4V | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3V 100 H20
|
||||||||||
| HK3V 50 H20 | ±50 | ±100 | ±12...15 | ±4V | ±1.0 | DC | -25~85 | Ø21.6 | KF2EDGV-3.81-4P | |
 HK3V 50 H20
|
||||||||||
| HK4V 2000 H00 | 2000 | ±4000 | ±15 | 4V | ±1.0 | DC...40 | -40~85 | 112mm x 30mm | 2EDG-4P-3.81 | |
 HK4V 2000 H00
|
||||||||||
| HK4V 3000 H00 | 3000 | ±5500 | ±15 | 4V | ±1.0 | DC...40 | -40~85 | 112mm×30mm | 2EDG-4P-3.81 | |
 HK4V 3000 H00
|
||||||||||
