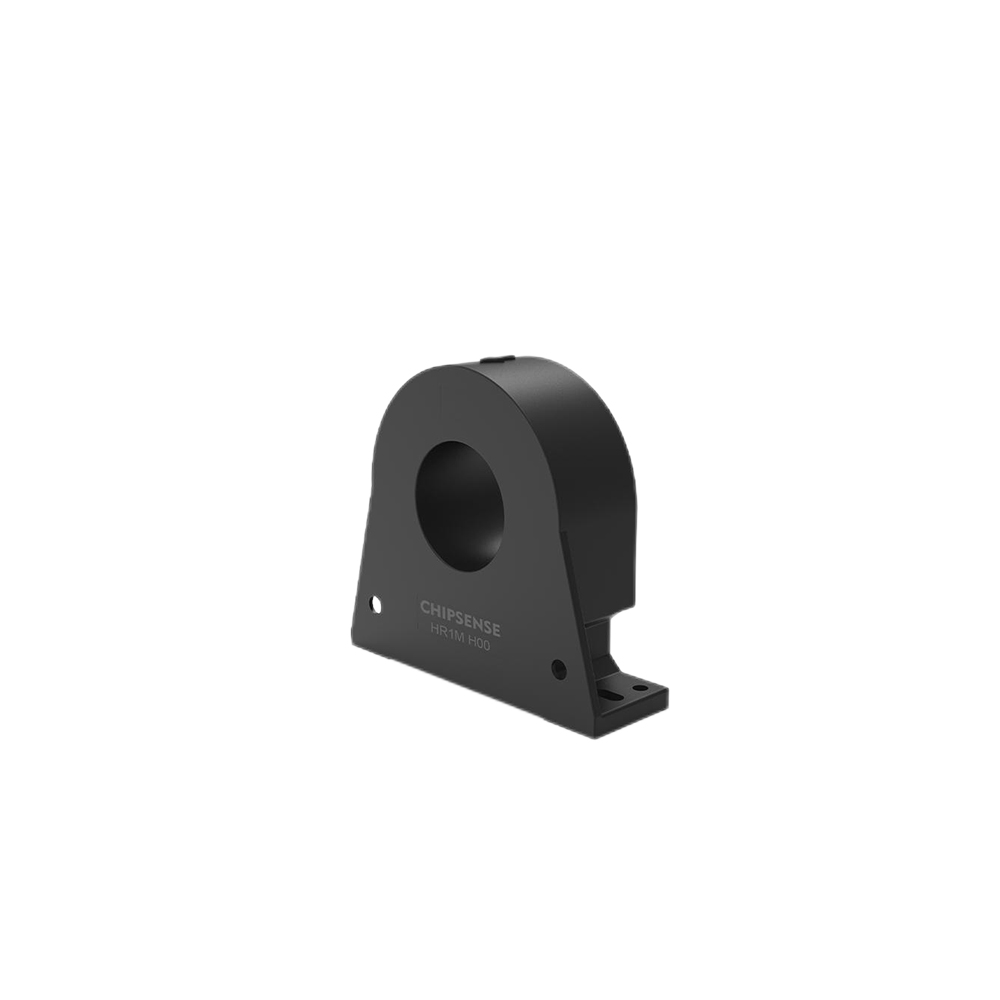

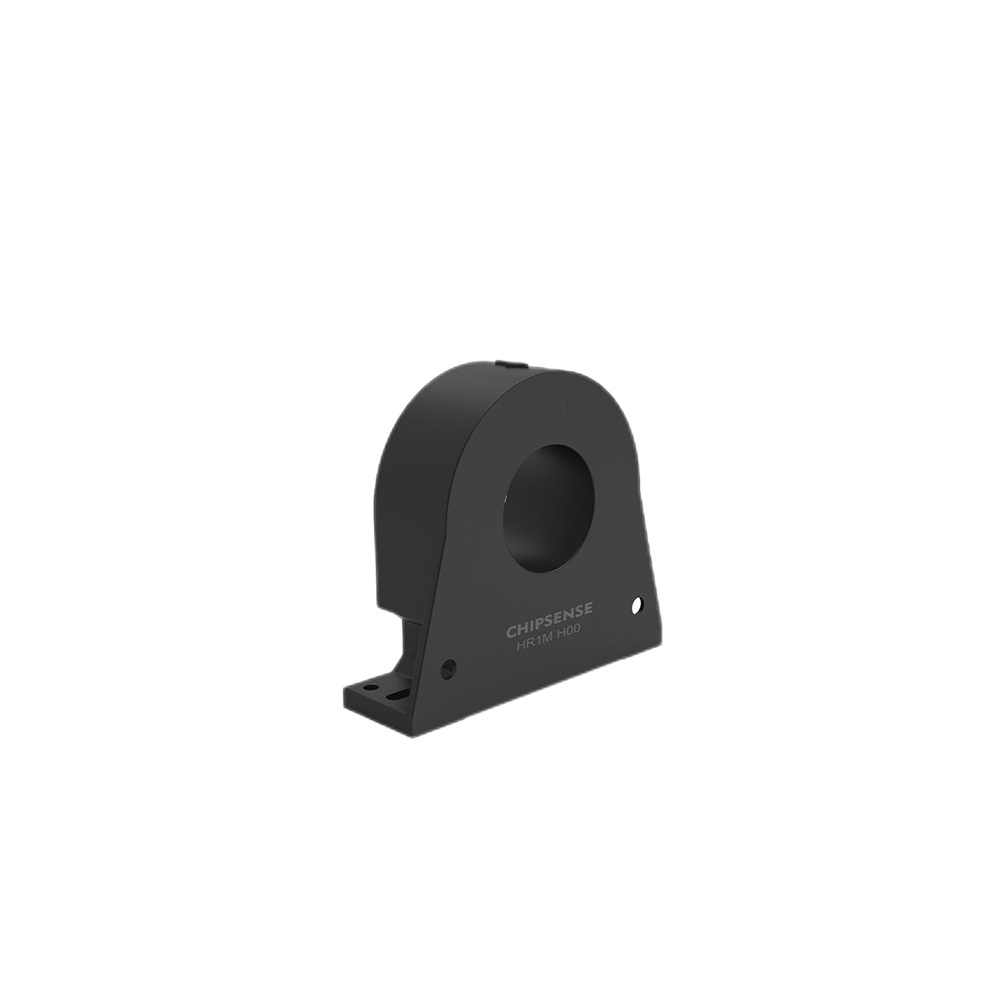

| HR1M H00（5 型号） |
100-200-300-400-500A |
±600 |
20...50 |
4...20mA |
±1 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HR1M 100 H00 |
100 |
±600 |
20...50 |
4...20mA |
±1 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
| HR1M 200 H00 |
200 |
±600 |
20...50 |
4...20mA |
±1 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
| HR1M 300 H00 |
300 |
±1000 |
20...50 |
4...20mA |
+1 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
| HR1M 400 H00 |
400 |
±1000 |
20...50 |
4...20mA |
+1 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
| HR1M 500 H00 |
500 |
±1800 |
20...50 |
4...20mA |
±1.0 |
20~6000 |
-40~85 |
Ø35.0 |
|
WJ2EDGVC-5.08-4P-14 |
HR1M H00 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 100A~500A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、充电桩、SMPS（开关电源）、电焊...
|
| HR1V H01（6 型号） |
50~500A |
±100 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HR1V 50 H01 |
50 |
±100 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| HR1V 100 H01 |
100 |
±200 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| HR1V 200 H01 |
200 |
±400 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| HR1V 300 H01 |
300 |
±600 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| HR1V 400 H01 |
400 |
±800 |
±12...15 |
±5V |
±1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
| HR1V 500 H01 |
500 |
±900 |
±12...15 |
±5V |
+1.0 |
20 |
-40~85 |
Ø20 |
|
JK2EDG-5.08-4P |
HR1V H01 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~500A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源、电...
|
| HR6V P00（4 型号） |
50-100-200-300A |
150 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HR6V 50 P00 |
50 |
150 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| HR6V 100 P00 |
100 |
300 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| HR6V 200 P00 |
200 |
500 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| HR6V 300 P00 |
300 |
500 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
HR6V P00 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~300A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|
| HR6V PB01（2 型号） |
50-100A |
150 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HR6V 50 PB01 |
50 |
150 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
| HR6V 100 PB01 |
100 |
300 |
±12...15 |
±4 |
±1.0 |
50 |
-40～85 |
Ø16.0 |
+ |
|
HR6V PB01 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~100A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS1V H00（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H00 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 200 H00 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 300 H00 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 400 H00 |
400 |
±900 |
±12...15 |
±4V |
+1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 600 H00 |
600 |
±900 |
±12...15 |
±4V |
+1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 100 H00 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |

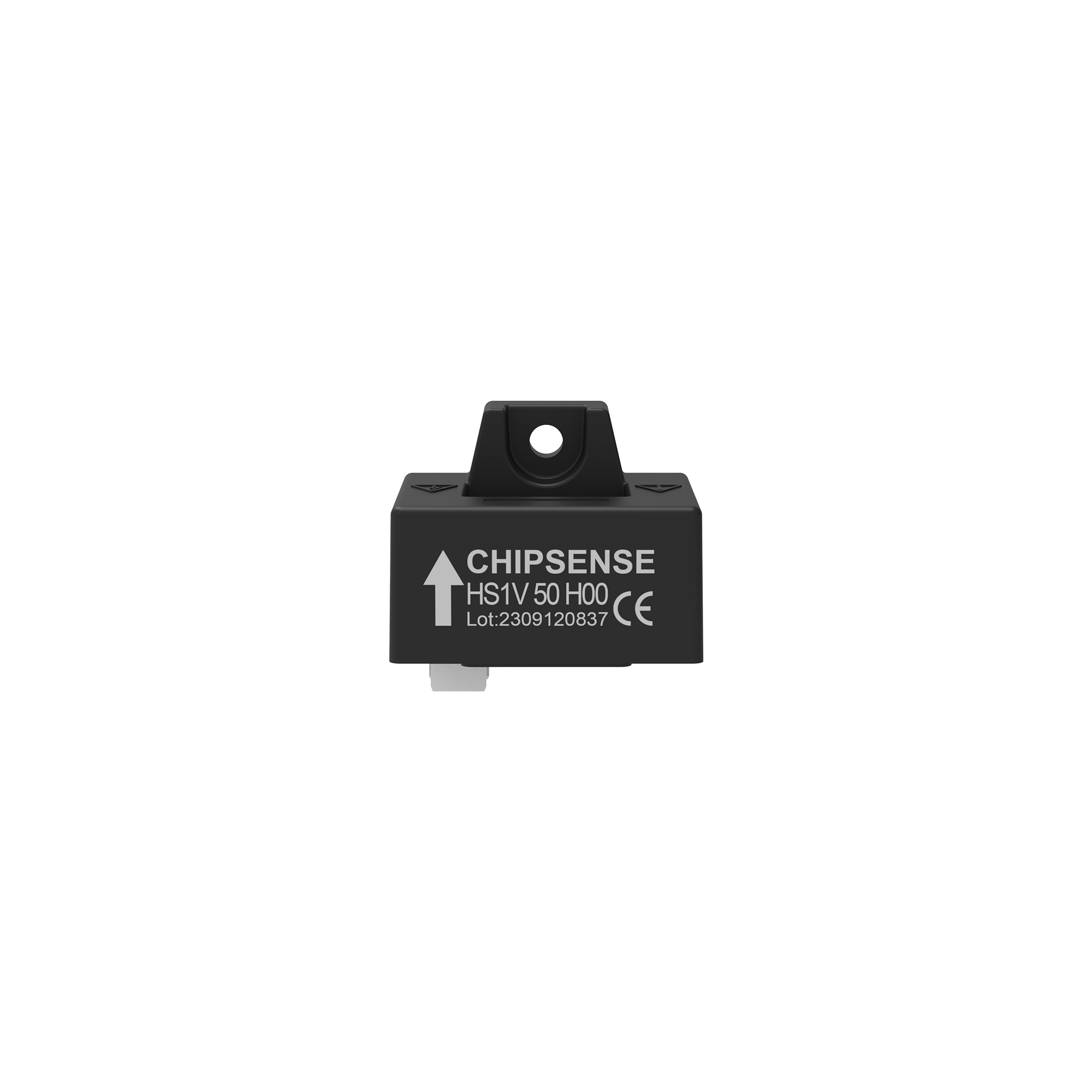

| HS1V 500 H00 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
<p>HS1V H00 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|

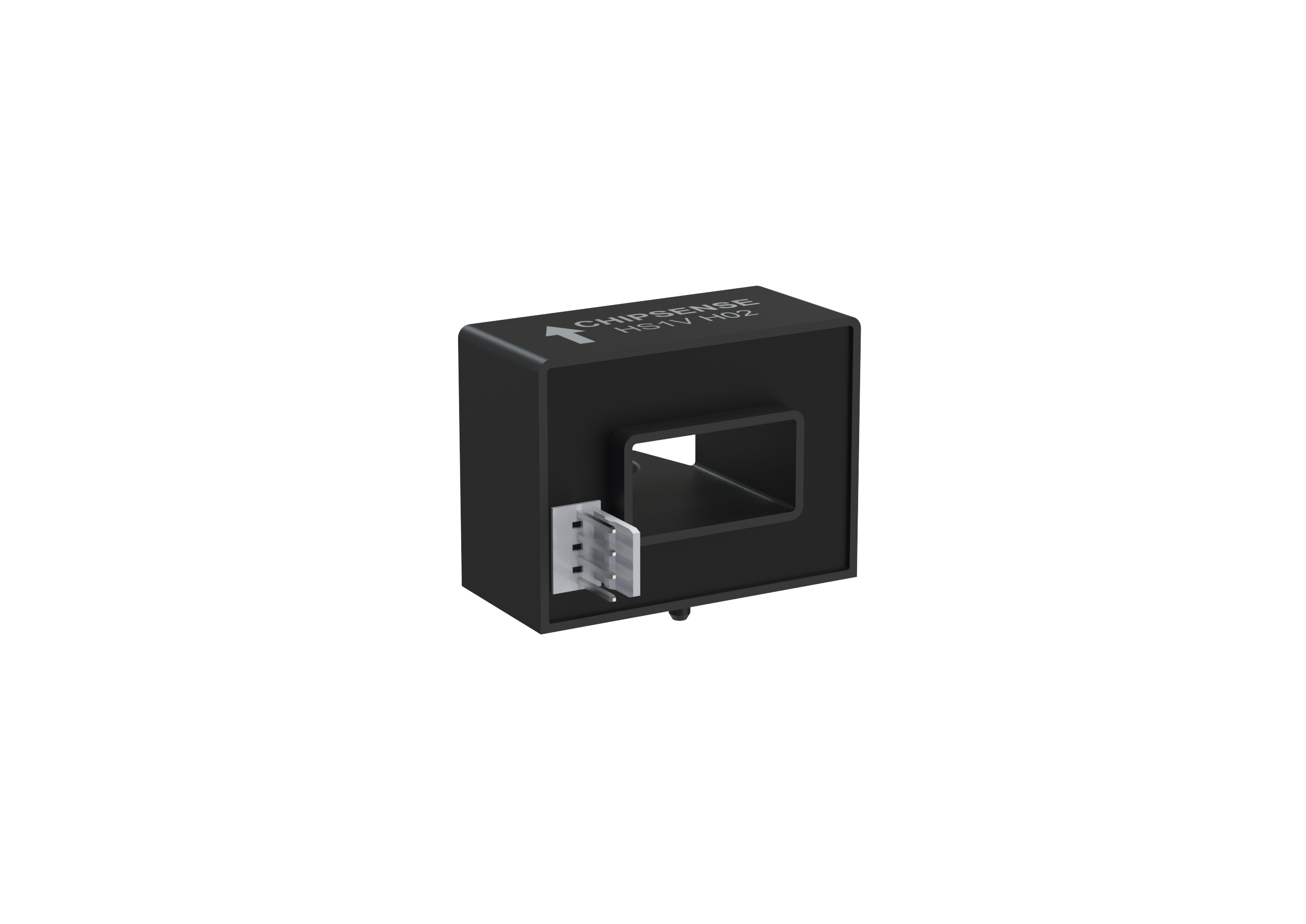

| HS1V H02（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H02 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 100 H02 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 200 H02 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 300 H02 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 400 H02 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 500 H02 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
| HS1V 600 H02 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
MOLEX 5045-04A |
HS1V H02 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|
| HS1V H03（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H03 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| HS1V 100 H03 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| HS1V 200 H03 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| HS1V 300 H03 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |

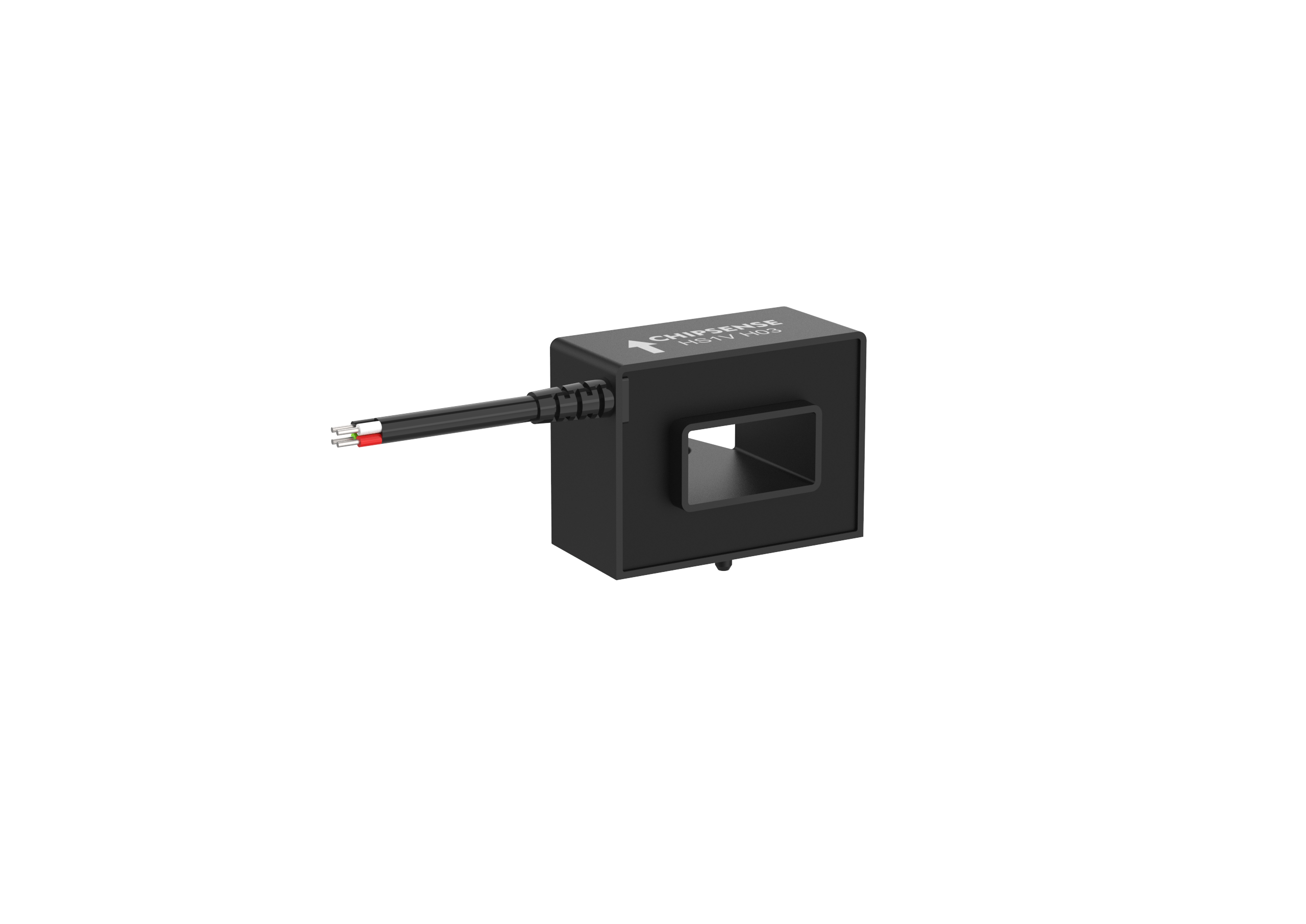

| HS1V 400 H03 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| HS1V 500 H03 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
| HS1V 600 H03 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 500mm |
HS1V H03 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源、直...
|
| HS1V H04（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H04 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
| HS1V 100 H04 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
| HS1V 200 H04 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
| HS1V 300 H04 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |

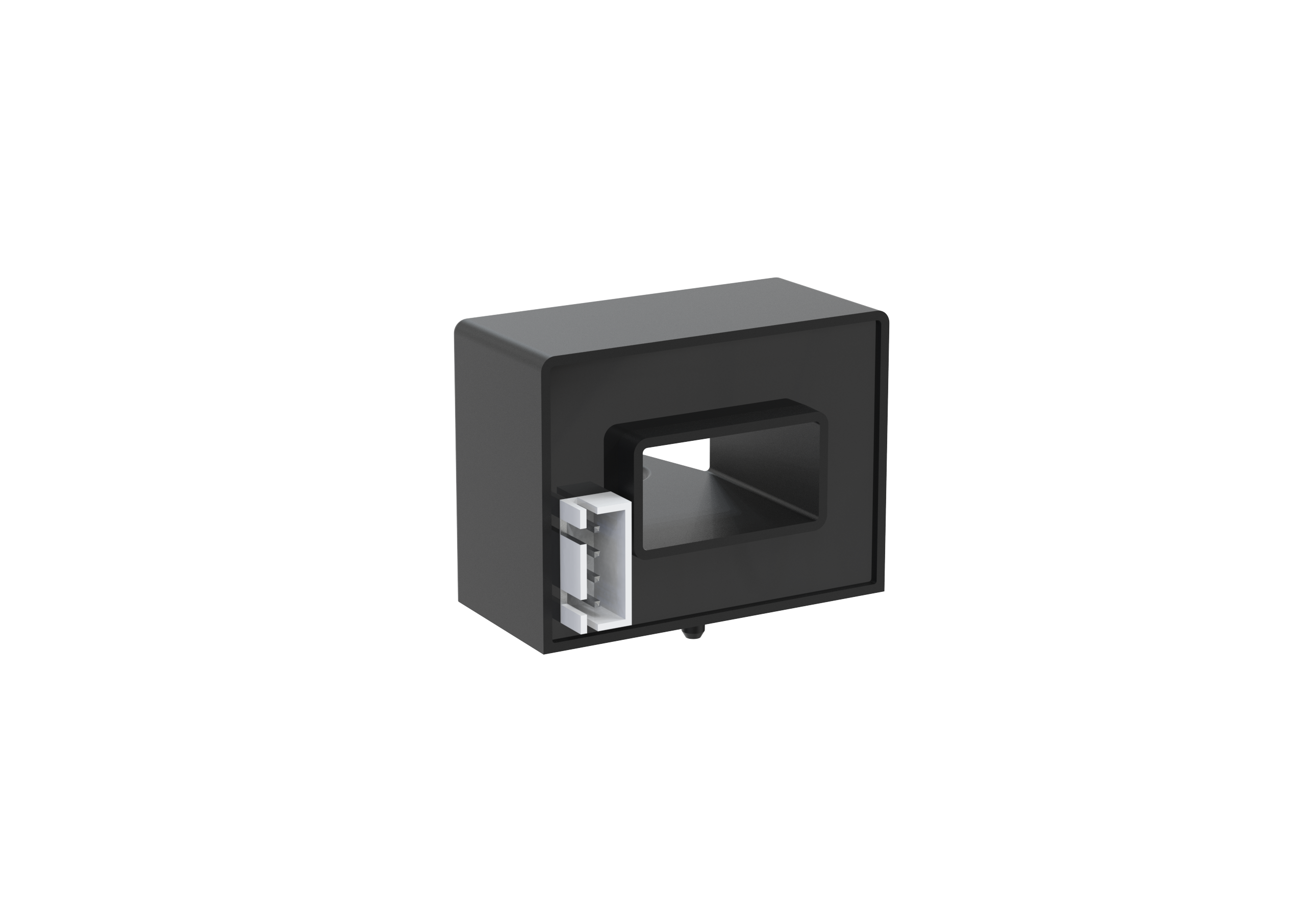

| HS1V 400 H04 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |

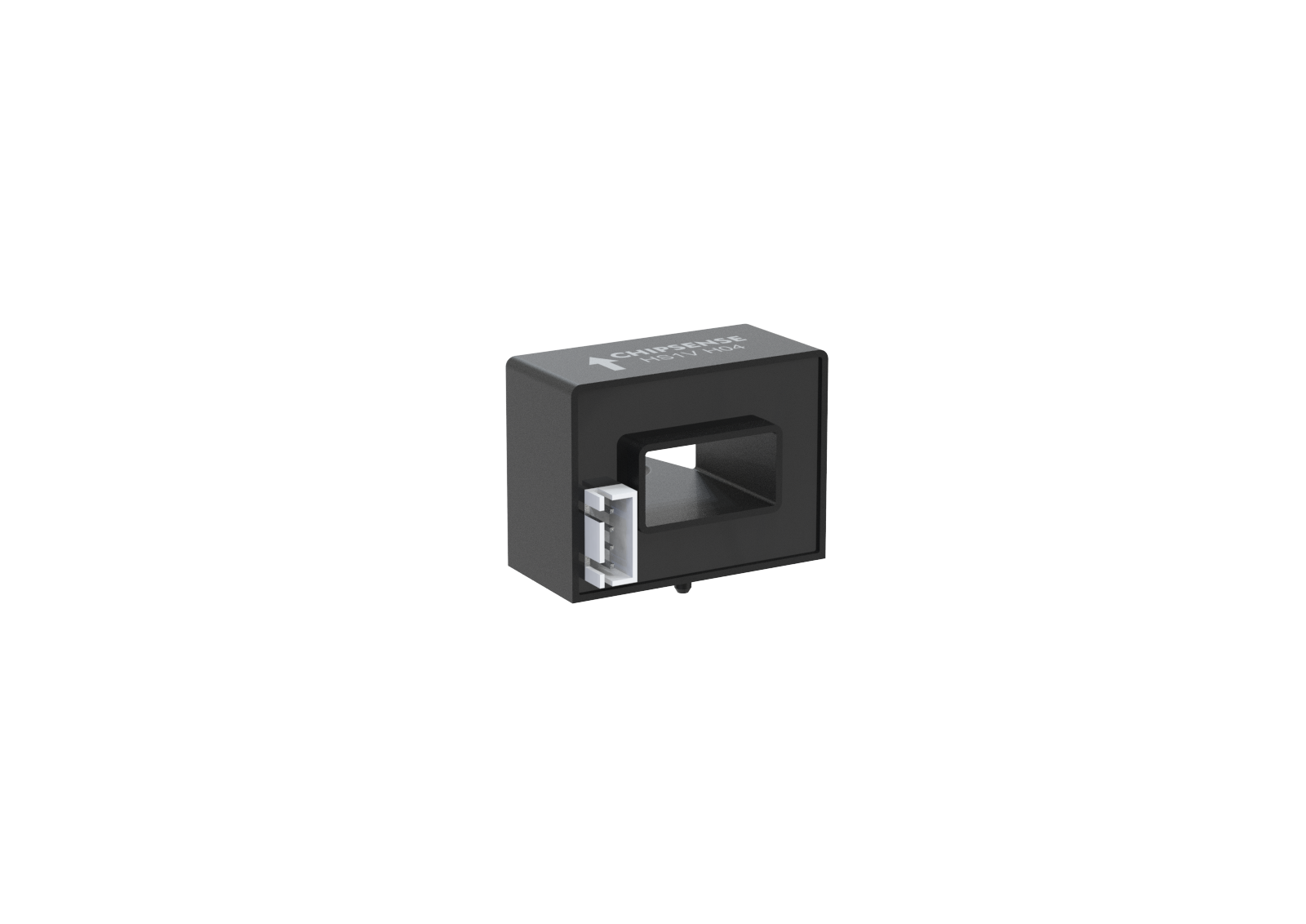

| HS1V 500 H04 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
| HS1V 600 H04 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH2.54-4P |
HS1V H04 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源、直...
|
| HS1V H05（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H05 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 100 H05 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 200 H05 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 300 H05 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 400 H05 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 500 H05 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
| HS1V 600 H05 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20x10 mm |
|
MOLEX 5045-04A |
HS1V H05 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|
| HS1V H06（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H06 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| HS1V 100 H06 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| HS1V 200 H06 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| HS1V 300 H06 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |

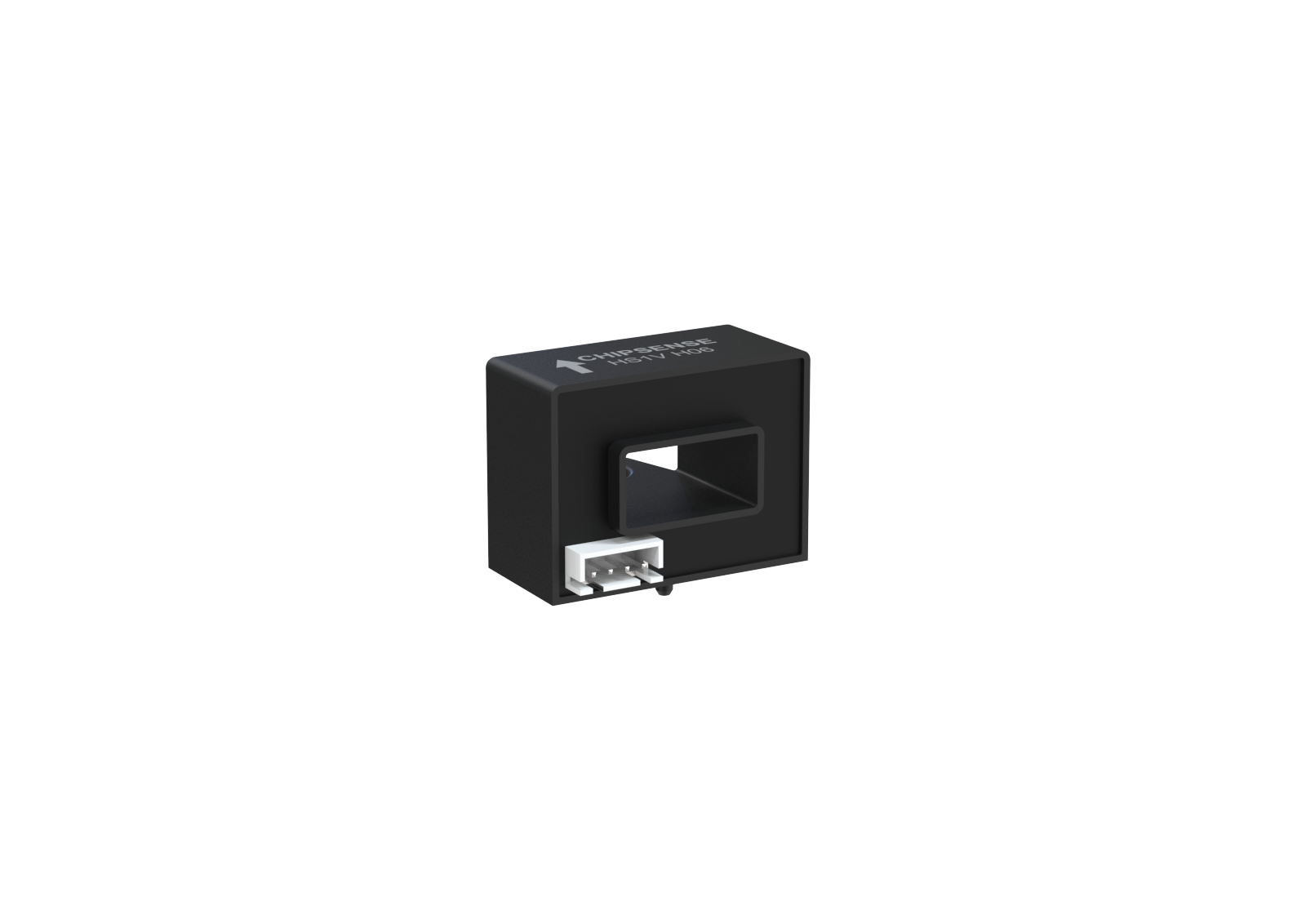

| HS1V 400 H06 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| HS1V 500 H06 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
| HS1V 600 H06 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
XH-4A |
HS1V H06 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|

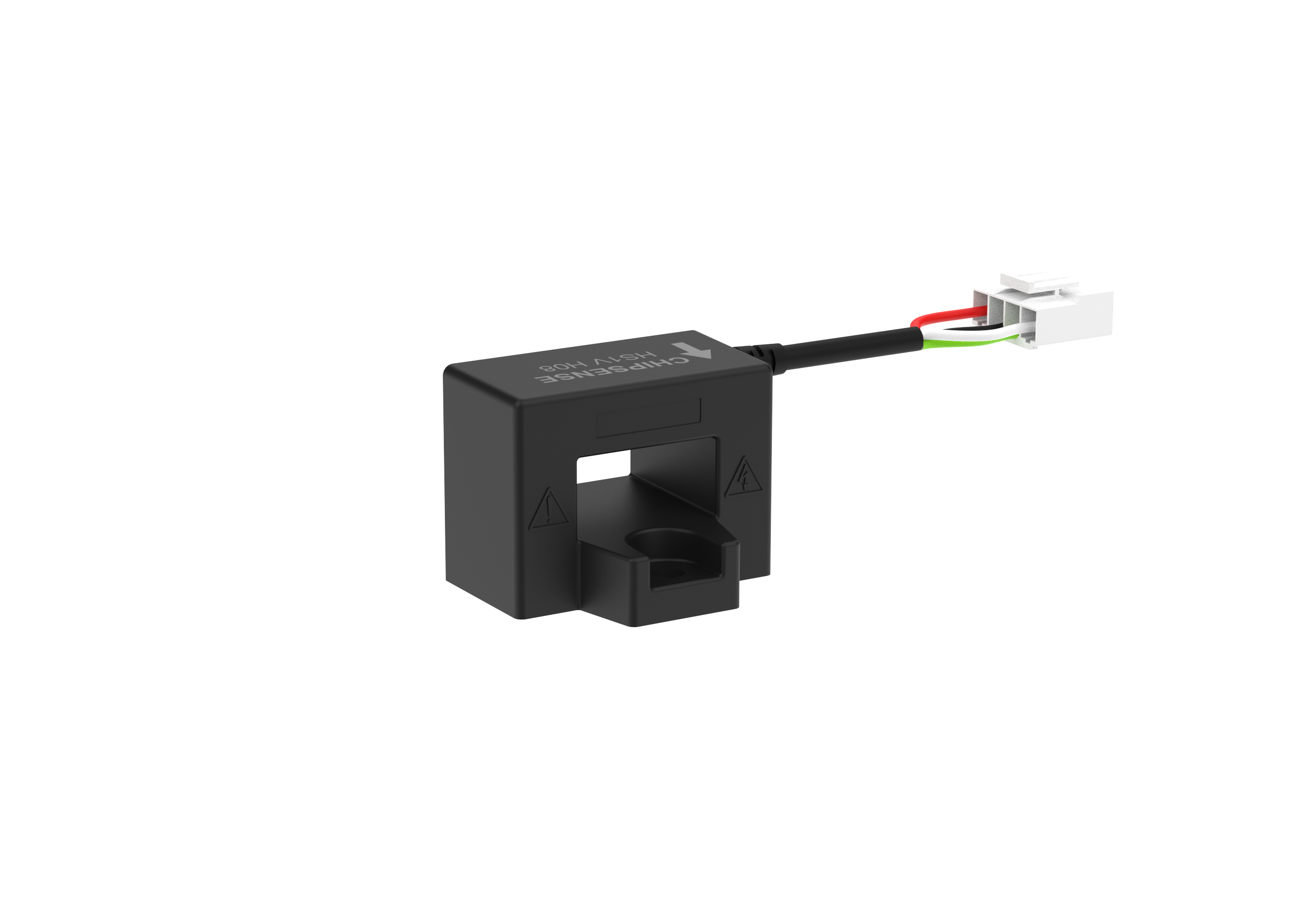

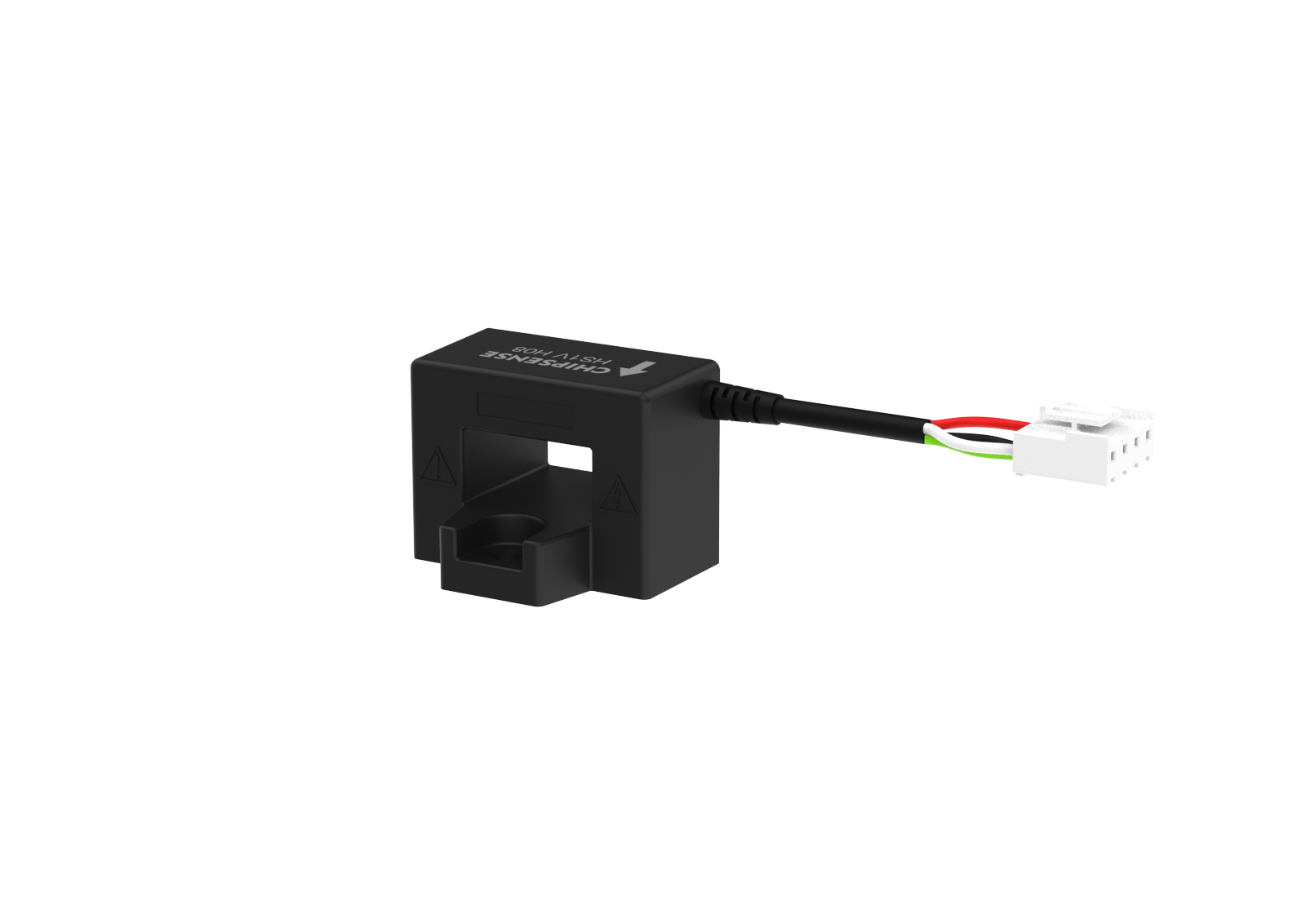

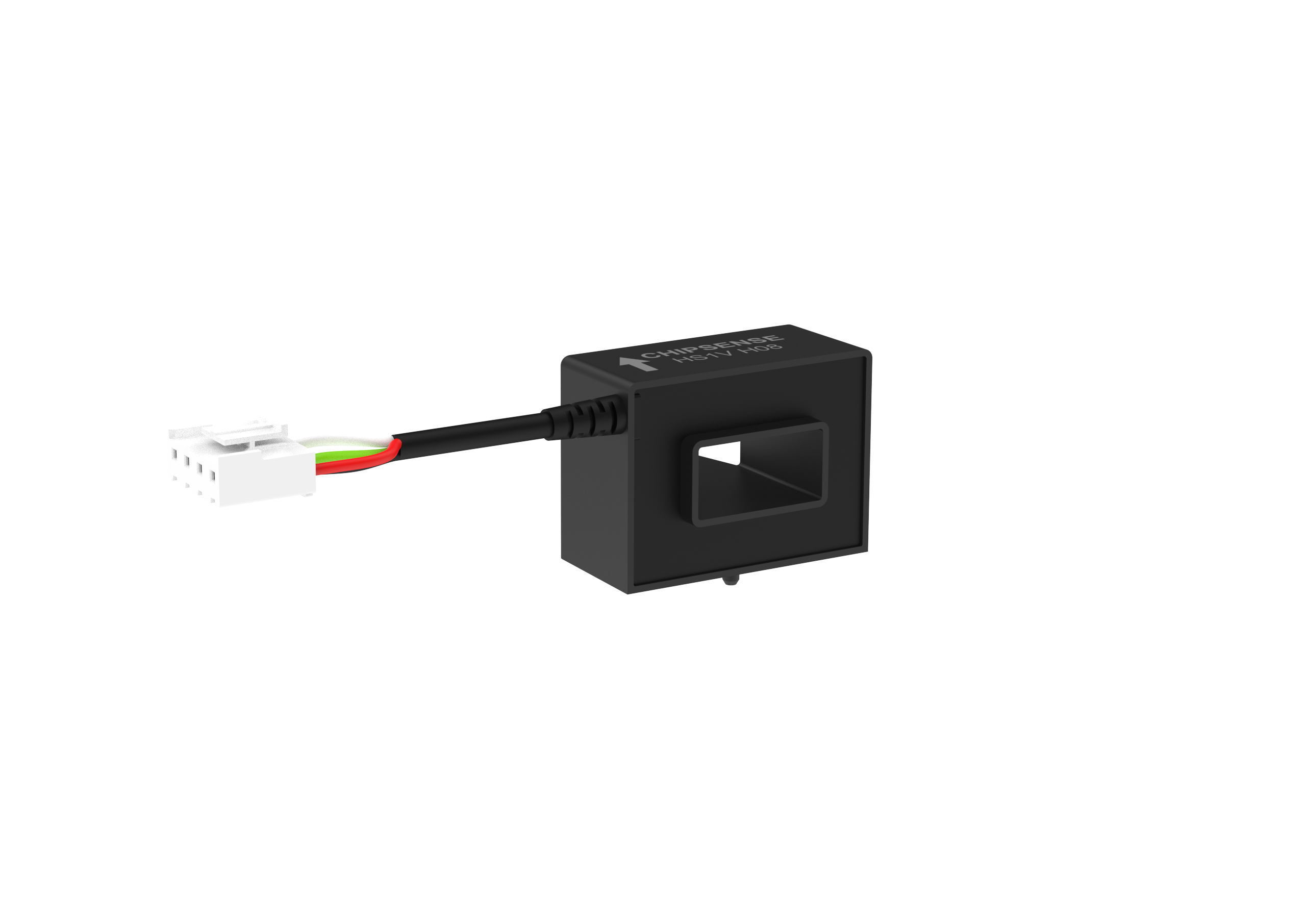

| HS1V H08（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H08 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 100 H08 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 200 H08 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 300 H08 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 400 H08 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 500 H08 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
| HS1V 600 H08 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm + HC-VH-T |
HS1V H08 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|
| HS1V H09（7 型号） |
50~600A |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS1V 50 H09 |
50 |
±150 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |

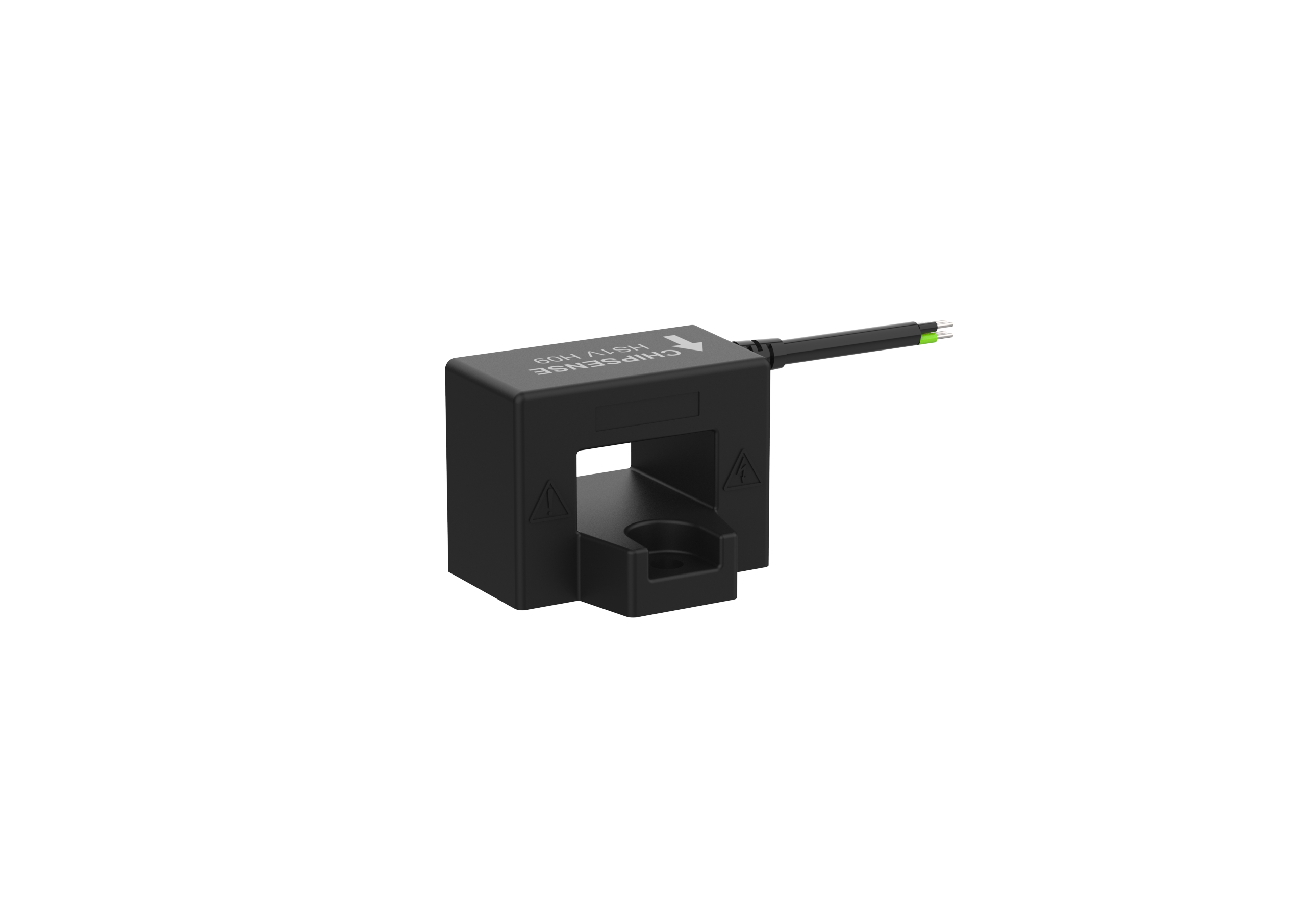

| HS1V 100 H09 |
100 |
±300 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
| HS1V 200 H09 |
200 |
±600 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
| HS1V 300 H09 |
300 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
| HS1V 400 H09 |
400 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
| HS1V 500 H09 |
500 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |

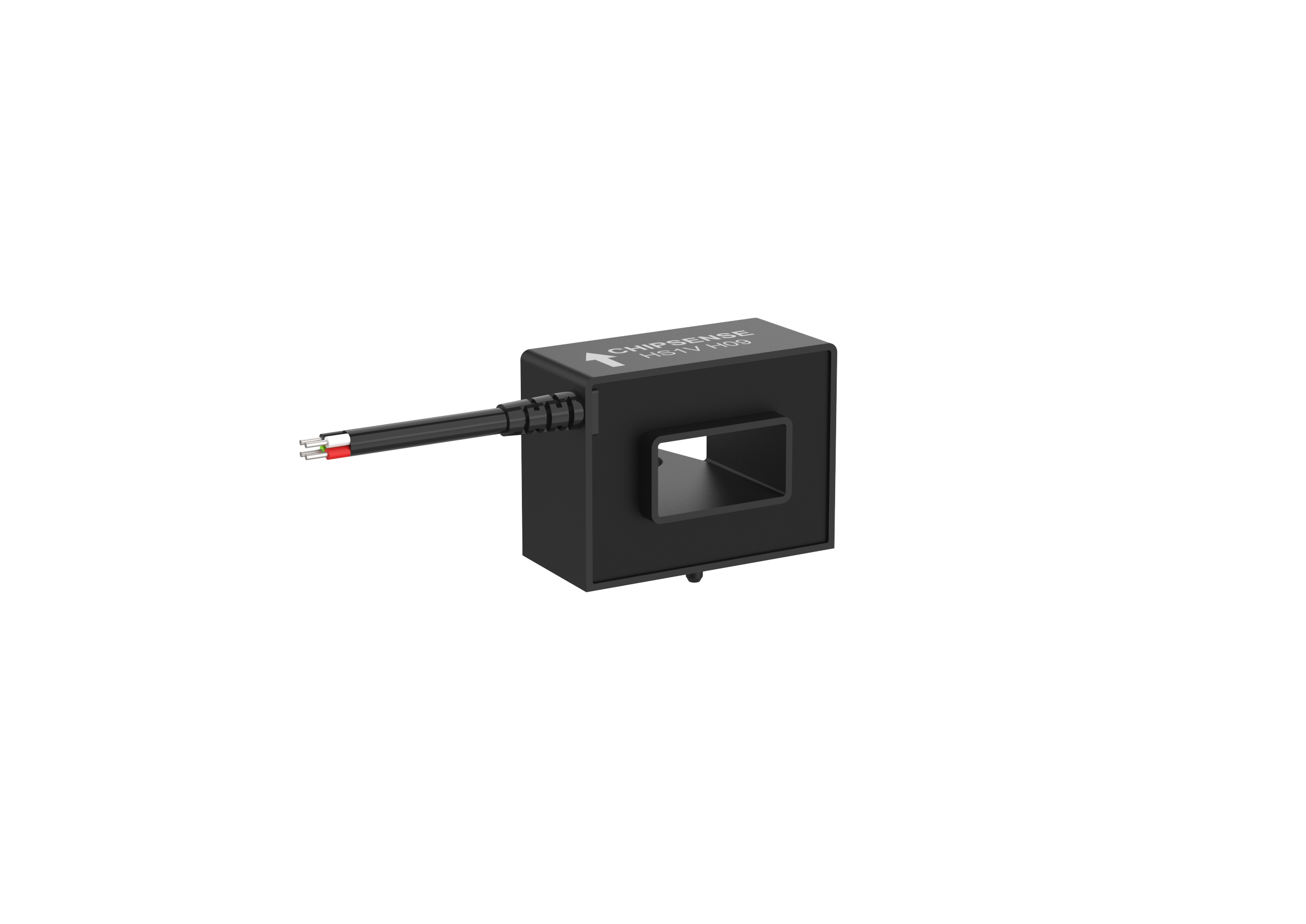

| HS1V 600 H09 |
600 |
±900 |
±12...15 |
±4V |
±1.0 |
50 |
-40~105 |
20.4x10.4 mm |
|
RVV4*0.2mm*0.2mm - 700mm |
HS1V H09 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 50A~600A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源...
|
| HS2V H00（3 型号） |
400-800-1200A |
±1200 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS2V 400 H00 |
400 |
±1200 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 800 H00 |
800 |
±2400 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 1200 H00 |
1200 |
±2500 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
<p>HS2V H00 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 400A~1200A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS2V H01（8 型号） |
200~1500A |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS2V 200 H01 |
200 |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| HS2V 400 H01 |
400 |
±1200 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| HS2V 500 H01 |
500 |
±1500 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| HS2V 600 H01 |
600 |
±1800 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| HS2V 800 H01 |
800 |
±2400 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |

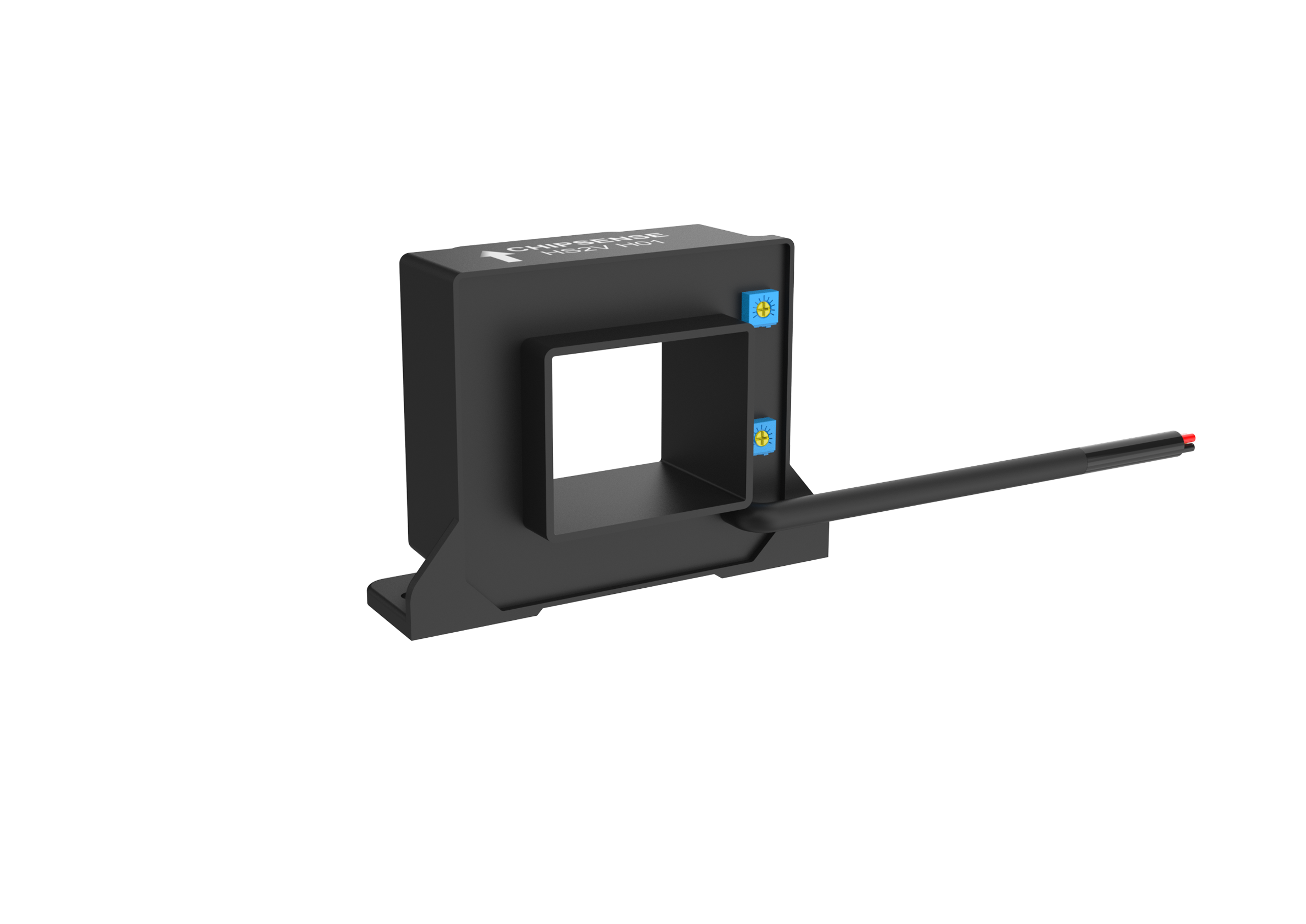

| HS2V 1000 H01 |
1000 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |

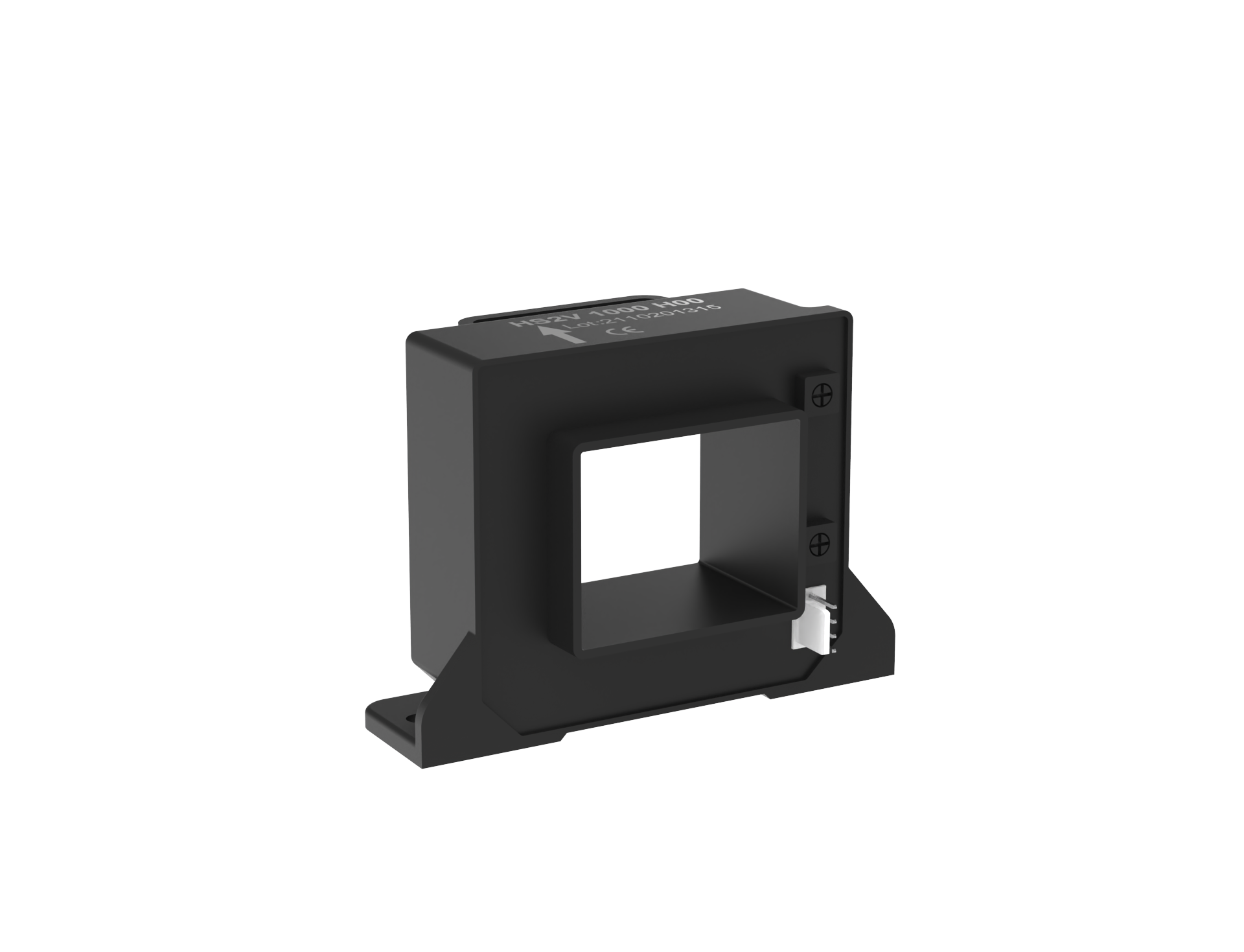

| HS2V 1200 H01 |
1200 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
| HS2V 1500 H01 |
1500 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
RVVP 4*0.3mm*0.3mm- 1500mm |
<p>HS2V H01 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 200A~1500A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS2V H02（8 型号） |
200~1500A |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS2V 200 H02 |
200 |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 400 H02 |
400 |
±1200 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 500 H02 |
500 |
±1500 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 600 H02 |
600 |
±1800 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 800 H02 |
800 |
±2400 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |

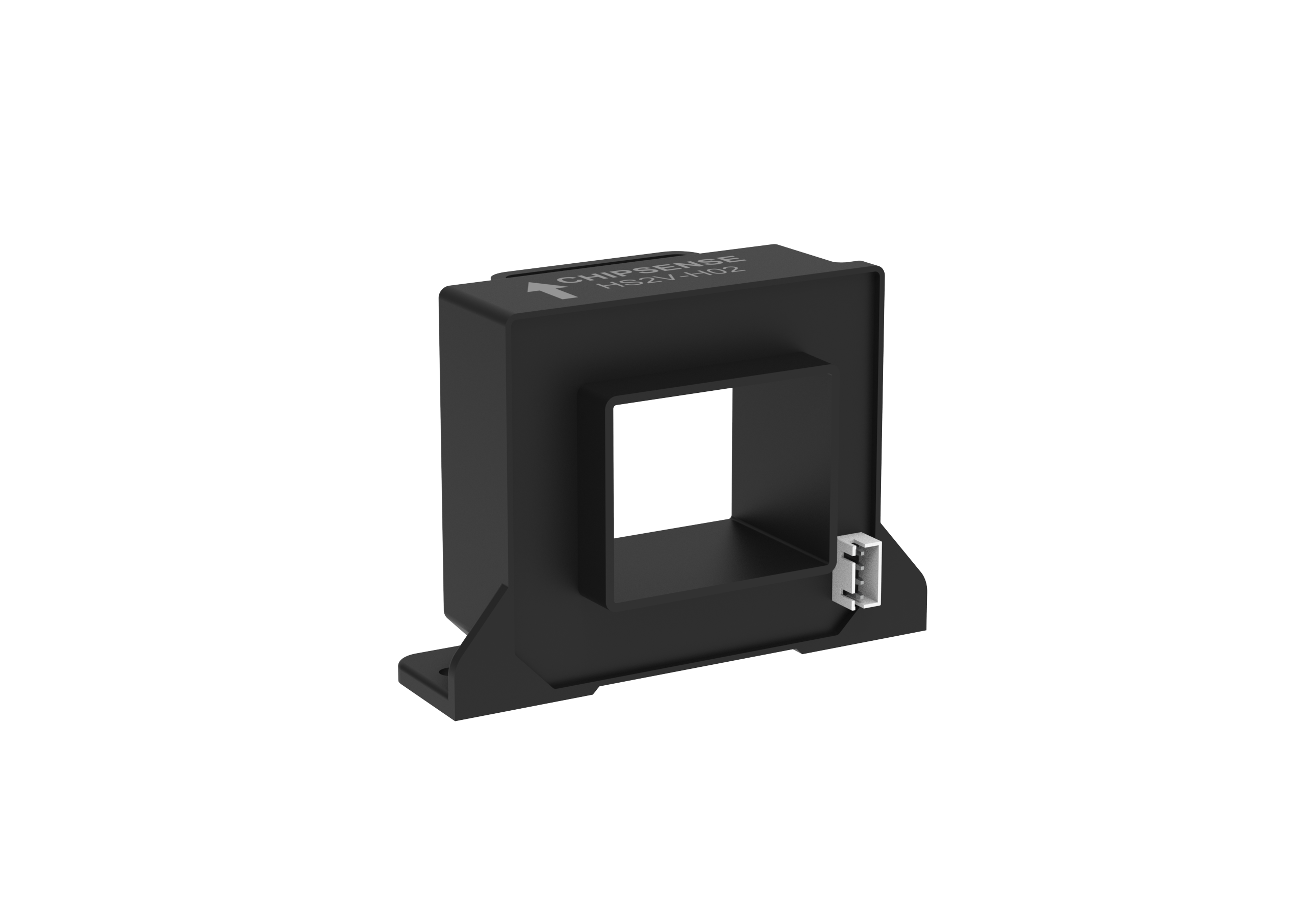

| HS2V 1000 H02 |
1000 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 1200 H02 |
1200 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
| HS2V 1500 H02 |
1500 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
XH-4A |
HS2V H02 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 200A~1500A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS2V H05（5 型号） |
200-500-600-1000-1500A |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS2V 200 H05 |
200 |
±600 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 500 H05 |
500 |
±1500A |
±15 |
±4V |
+1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 600 H05 |
600 |
±1800 |
±15 |
±4V |
+1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 1000 H05 |
1000 |
±2500 |
±15 |
±4V |
+1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
| HS2V 1500 H05 |
1500 |
±2500 |
±15 |
±4V |
±1.0 |
25 |
-40~105 |
40.5x32.5 mm |
|
MOLEX 5045-04A |
HS2V H05 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 200A~1500A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS3V H00（8 型号） |
500~3000A |
+2400 |
±15 |
±4V |
+1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS3V 800 H00 |
800 |
+2400 |
±15 |
±4V |
+1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 1500 H00 |
1500 |
±4500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 2000 H00 |
2000 |
±5500 |
±15 |
±4V |
±1 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 3000 H00 |
3000 |
±5500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |

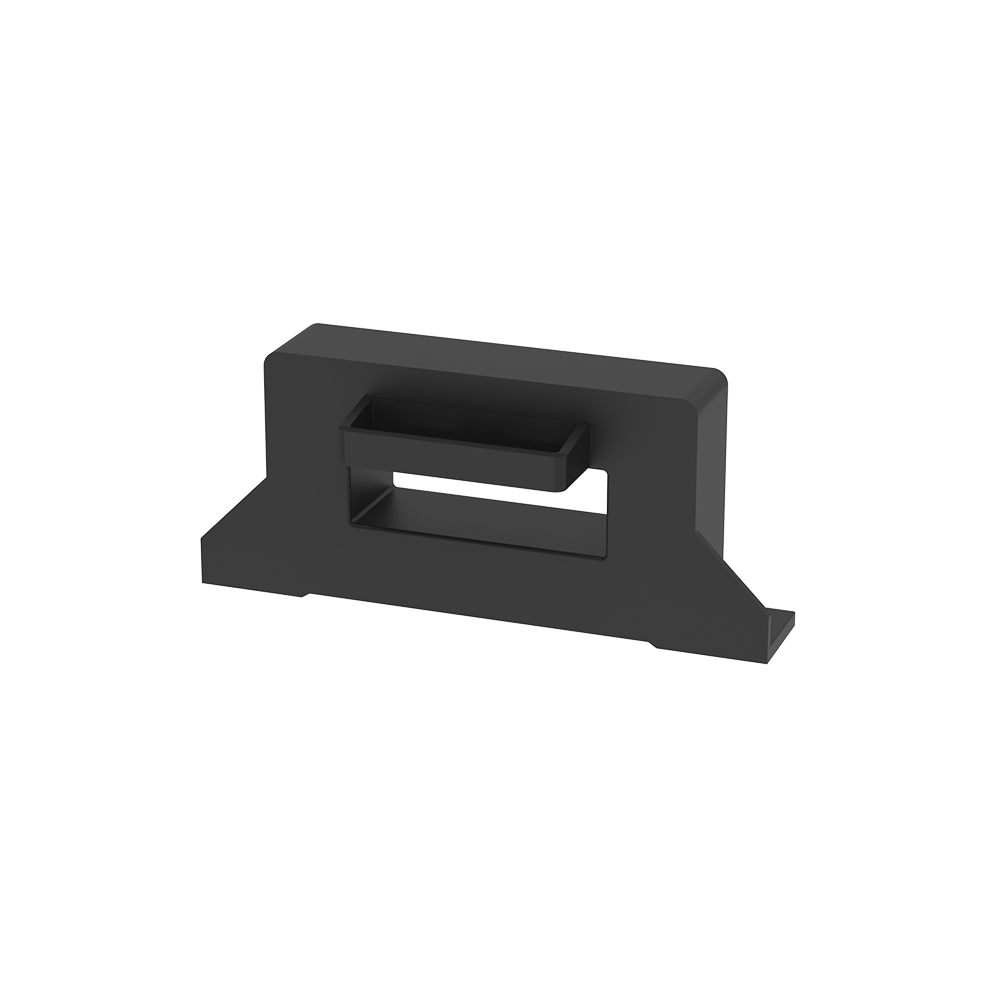

| HS3V 500 H00 |
500 |
±1500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 600 H00 |
600 |
±1800 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 1000 H00 |
1000 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
| HS3V 2500 H00 |
2500 |
±5500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
MOLEX 5045-04A |
HS3V H00 系列开环霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 500A~3000A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电...
|
| HS3V H01（9 型号） |
500~3000A |
±1500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| 型号 |
原边额定电流有效值(A) |
测量范围(A) |
供电电压(V) |
副边输出 |
精度(%) |
输出带宽(kHz) |
使用温度(°C) |
铜排(mm) |
PCB |
其它 |
| HS3V 500 H01 |
500 |
±1500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |

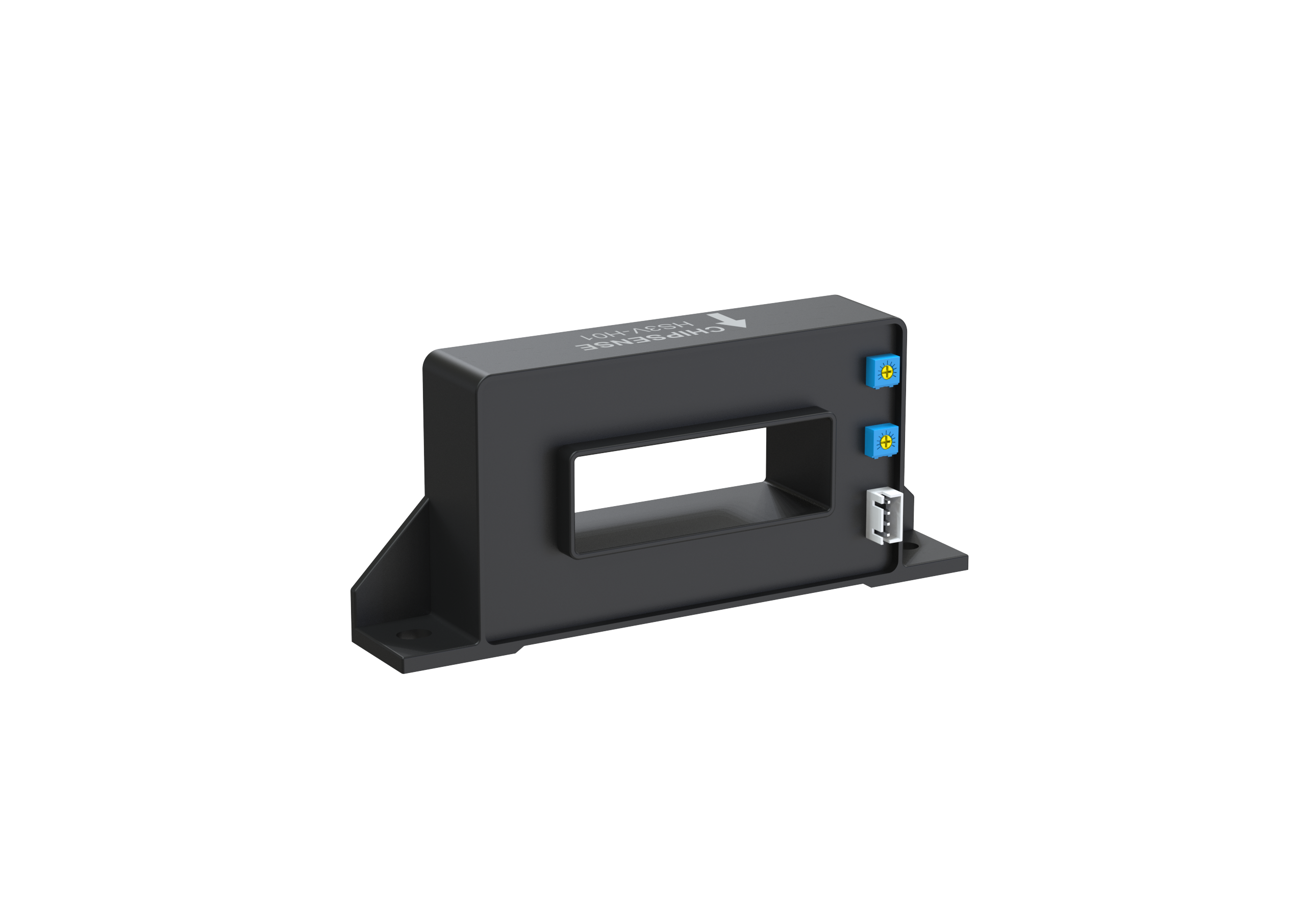

| HS3V 600 H01 |
600 |
±1800 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |

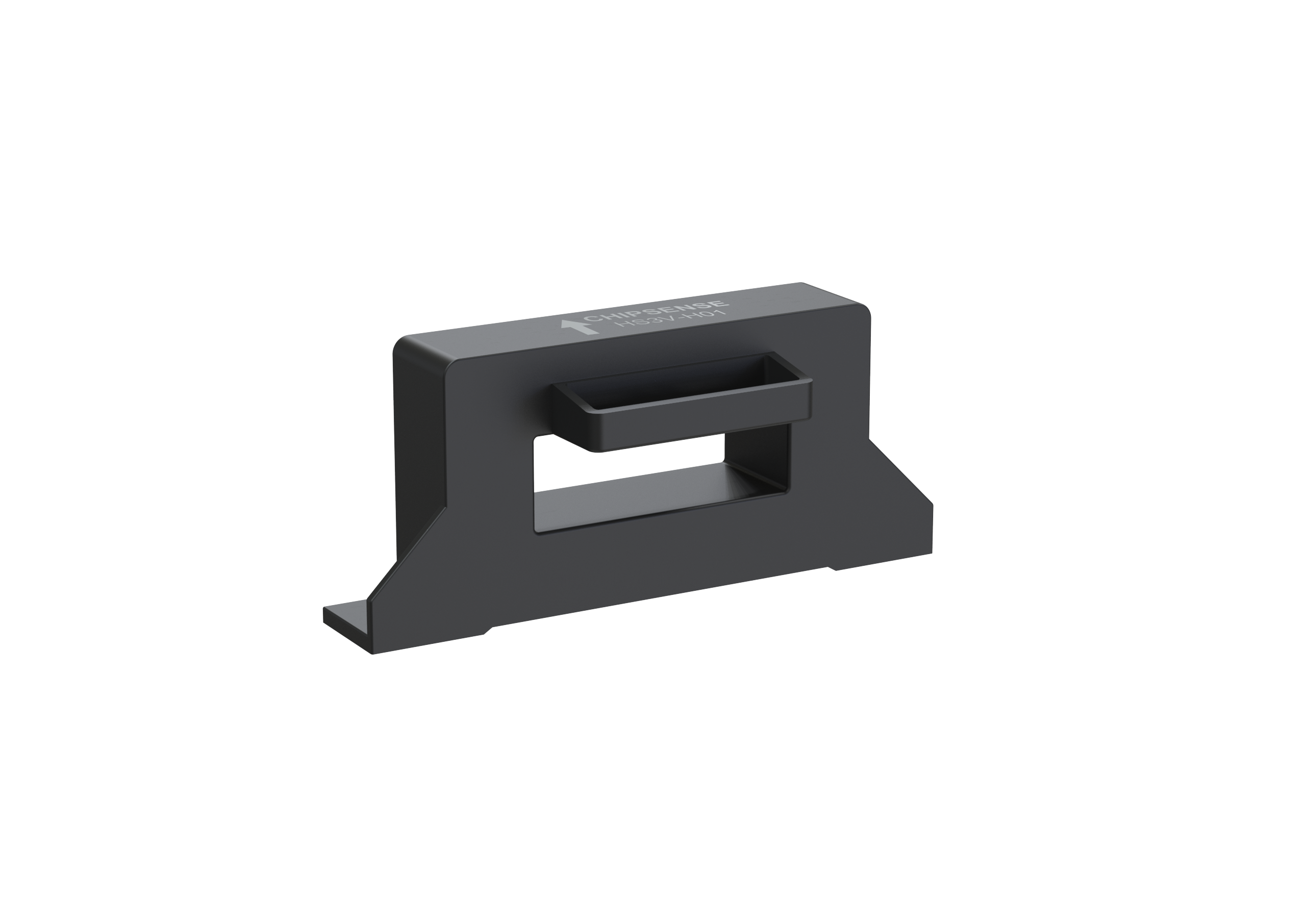

| HS3V 800 H01 |
800 |
±2400 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 1000 H01 |
1000 |
±3000 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 1200 H01 |
1200 |
±3600 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 1500 H01 |
1500 |
±4500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 2000 H01 |
2000 |
±5500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 2500 H01 |
2500 |
±5500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
| HS3V 3000 H01 |
3000 |
±5500 |
±15 |
±4V |
±1.0 |
25 |
-40~85 |
64 x 21 mm |
|
XH-4A |
HS3V H01 系列霍尔电流传感器，基于霍尔效应原理实现对原边电流的非接触式测量。额定测量范围覆盖 500A~3000A，产品关键性能指标可对标国际主流品牌同类产品，广泛应用于不间断电源、SMPS（开关电源）、电焊机电源、...
|
